Dillon XL650/XL750 Case Ejector Powder Knob Pickup tube/Primer rod holder 5Pcs c

Dillon XL650/XL750 Case Ejector Powder Knob Pickup tube/Primer rod holder 5Pcs c

$27.00 USD
$27.00 USD
Sale Sold out
These are the top 5 parts to add to your Dillon Reloader. I designed each part to give you better accuracy , faster setups and more control of your press. Every part is also designed to last by using high infills rates, mixed Infill settings and all Stainless hardware . My goal Is to provide you with Parts, that you only have to buy Once.

This listing is for the following items

2pcs  Bearing / Bushing type Case Ejectors
1pcs  Powder Measurer Dial Knob
1pcs  11 slots for Primer pickup tubes and or Small / Large Primer Magazines tubes ( Two holders for the price of one )
1pcs  Small Powder Bar Dial Indicator Body
1pcs  Upgraded Live primer Shoot


What sets this item apart from the others .

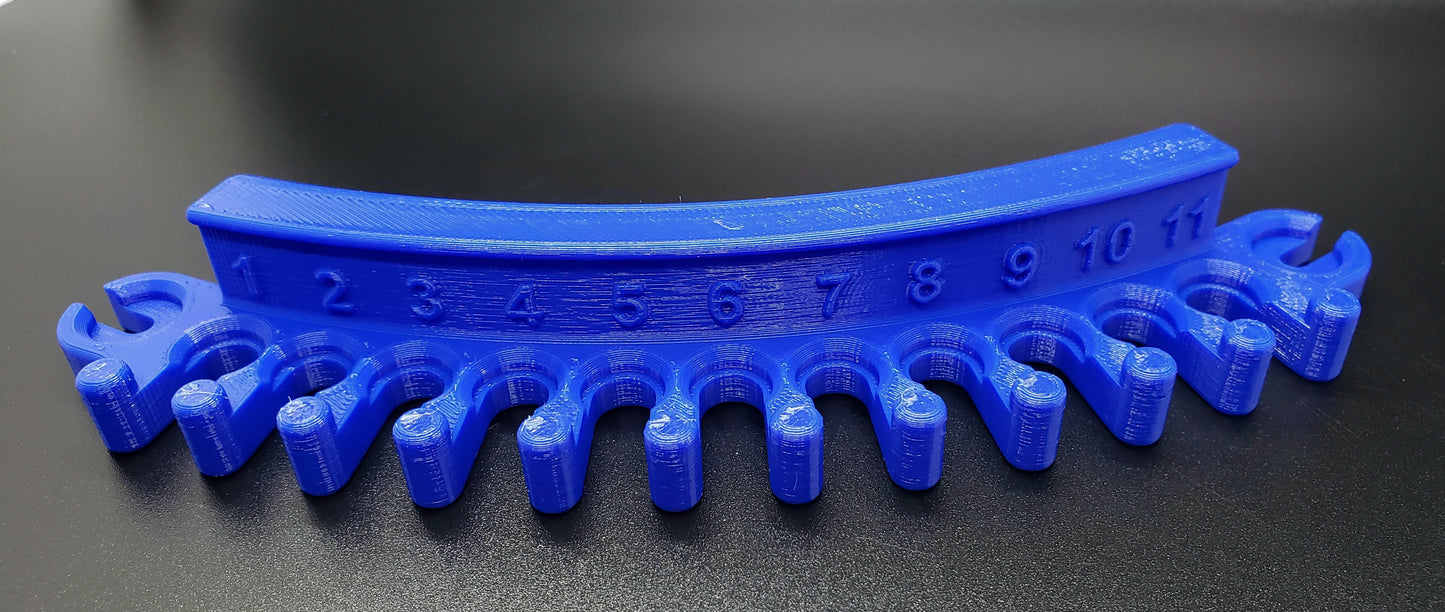

It has 11 slots for Primer pickup tubes and or Small / Large Primer Magazines tubes , Pus has a mount on either end to hold your Primer Follower Rod .  This part can be mounted on either side of your case feeder and still have easy access to all your tubes and your follower rod.



1 . Holds 11 pickup tubes and or L/S magazine tubes .


2.  Has 2 mounts on the either end for your Primer Follower Rod .


3 . Uses two Stainless Steel set screws for secure mounting to the case feeder.


4.  Tubes are securely held in place with the use of deep  drop down slots .


5.  Numbers on eleven of the slots


6.  Can be mounted anywhere on the case feeder and have easy access to the Primer Follower Rod .


7. Save money by getting three holders one part.


7. High quality print .

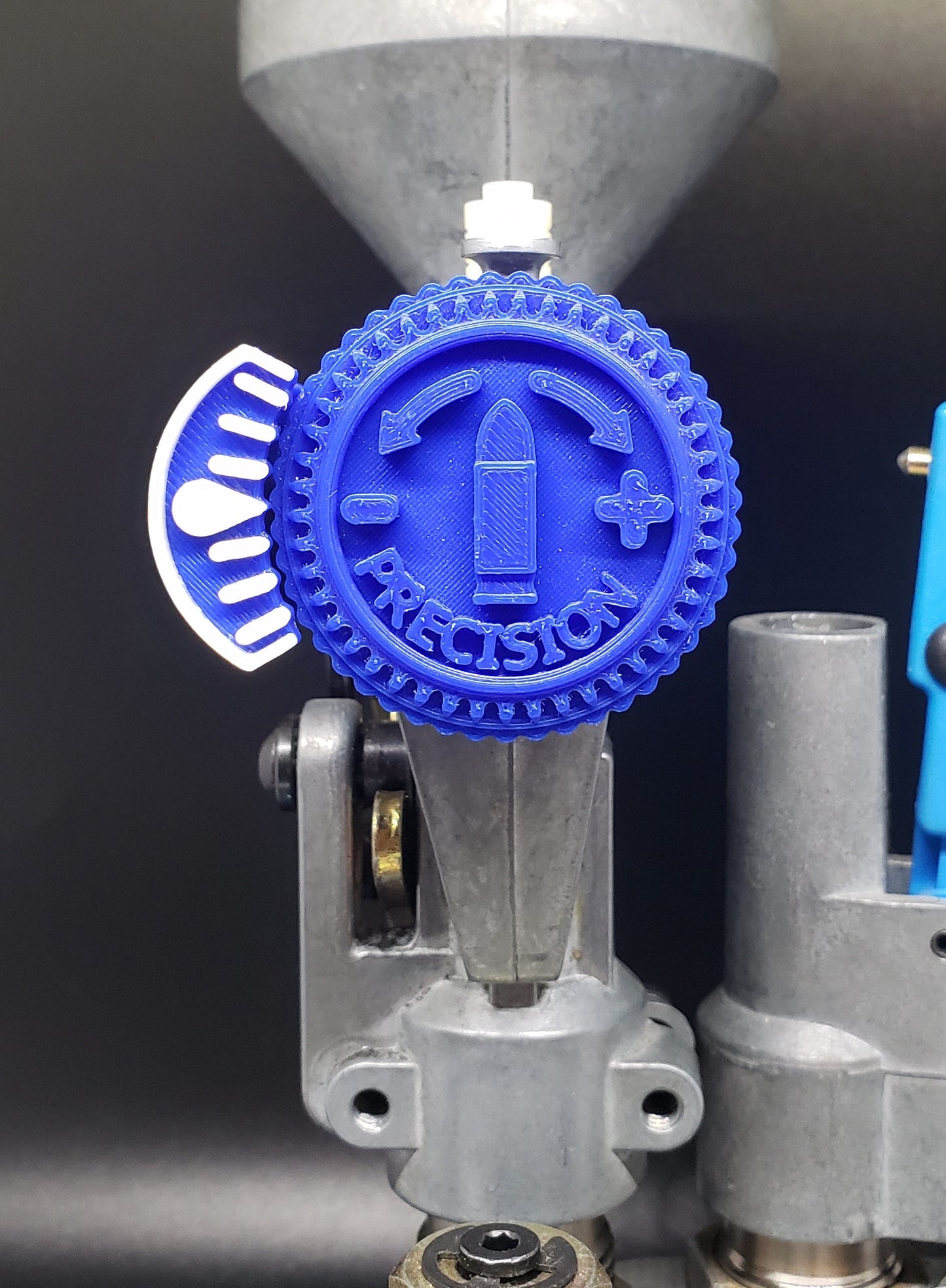

Powder Measure Knob.  Fits any Dillon 7/16 ( 11.1mm ) powder measure screw head .

Design advantages of the Powder Knob

1. Has easy to read markings on BOTH sides of the dial.


2. Has a Setscrew and nut that locks the Knob onto the Powder measures screw head .  This makes for a Firm / tight connection that doesn't get sloppy and makes switching to other                Hoppers fast and easy . ( UNLIKE Press fit versions that get wobbly and loose every time you handle or remove them  .    )


3. Has 45 Indication marks on back face . Very useful if you decide to setup a pointer .


4. Dial is 1.600 Inches in Diameter by 0.450 Inches Thick for easy handling and tight profile to the reloader.


5. All hardware is Stainless Steel .




 Upgraded Case Ejector


This case ejector has been tested on .380 acp up to 45 acp . Also .223/5.56

This is a 3D printed part and is My Redesign to fix issues I've ran into with some of the current available Ejectors designs.

1. Moved the location of the setscrew and square nut, so you can access it when the shellplate has cases / rounds in it. .

2. Added fillets and thickened up the area where the square nut is located to help prevent stretching.

3. Increased clearance between the ejector and the case insert slide to prevent binding and to ensure case insert slide has full travel.

4. Increased  clearance between case insert slide and the finished round chute . Allows so more caliber uses and ability to adjust rotation for the perfect case ejection

5 The hardware is stainless steel .


Design advantages of the Upgraded live primer shoot


1. Helps to prevents the ski slope effect ,where the primer just slides down past the tray and jump onto the floor .


2. Doesn't Block or Impede the use of the stock the spent Primer bucket . ( This is an issue with many other versions of this part .)


3. Extra Large holding try, so you can keep on reloading and not having to worry about emptying the tray all the time  .


3.  Extra high sides wrap around the holding try .  This prevents primers from getting knock off as new primer are added . Also stops the ski slope effect ,where the primer slides down past the tray and jumps onto the floor .


4. Easy and fast to empty, Nothing to screw/unscrew .  Large slopping ramp on exit side of tray so the primers can be slid out easily and you can get back to reloading sooner.



Design advantages of this Part .


 1. Makes knowing the amount of Dial rotation simpler and more exact . Plus helps with repeatability for quicker setup times.


2. Has easy to read Indication marks printed in White Silk to help reference marks stand out clearly . Also because the marks are printed instead of being painted, they won't rub off.


3. Part is designed with a slight press fit and is secured using a Stainless steel setscrew and Square nut. No modifications are needed to the Powder bar  .
